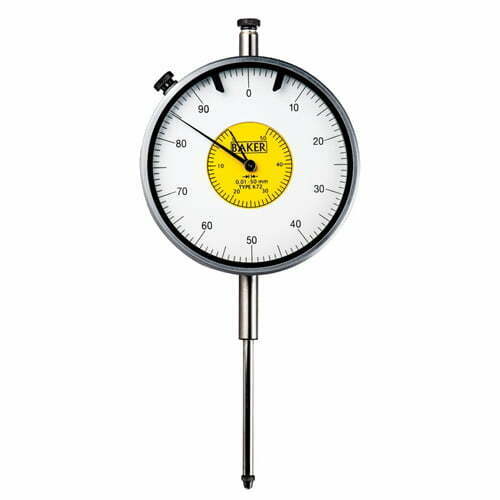

Plunger Type Dial Gauge – MODEL 88
MODEL 88 Mechanical large Diameter plunger type dial gauge with range 50mm/2inch. Used for measuring larger range up 50mm.
Features:
- Specification: IS, DIN, ANSI & JIS
- The one revolution dial gauge eliminates reading errors due to multiple revolutions
- Shock proof mechanism to absorb shock due to sudden spindle impact
- Every gauge carries a calibration certificate giving actual values
- Hardened stem for trouble free clamping
- Spindle made of stainless steel
- Fitted with tungsten carbide ball anvil
- Rigid brass case for increased rigidity
- Strong and smooth metal bezel
- Supplied with tolerance pointers
- Aesthetically appealing protective top cap in black colour
- Special dial Gauges for OEMs also manufactured on request
Metric:
| Bezel Dia. | Type | Reading | Range | Graduation |
|---|---|---|---|---|
| 88mm | K72 | 0.01mm | 50.0mm | 0-100 |
Inch:
| Bezel Dia. | Type | Reading | Range | Graduation |
|---|---|---|---|---|
| 88mm | K76 | 0.001″ | 2.0″ | 0-100 |
ANSI (AGD):
| Bezel Dia. | Type | Reading | Range | Graduation |
|---|---|---|---|---|
| 3 7/16″ | KB76 | 0.001″ | 2.0″ | 0-100 |
