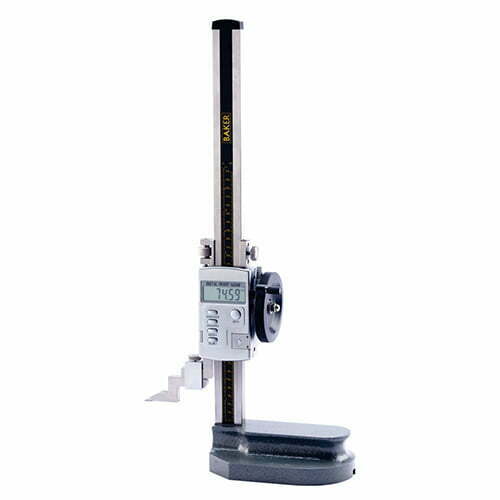

Digital Height Gauge – Range0-300mm, 0-600mm

Robustly constructed, stainless steel column with clearly marked scale graduation

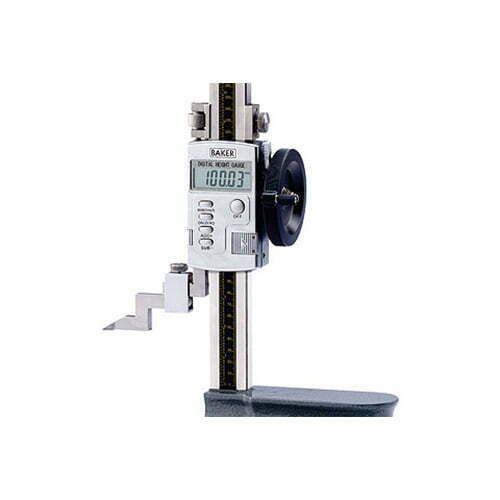

A clear multifunction digital LCD display runs smoothly on an analogue vertical scale
Fine adjustment with lock provided for ease of setting
For easy and precise maneuverability, the base has a specially designed thumb grip
Carbide tipped scriber
Inch / Metric capability
Functions consist of power ON/OFF, absolute / incremental mode, mm/in., preset & hold and tolerance setting
Powered by easily replaceable silver oxide battery (Type SR44,1.55V)
Operating environment:- Temperature 5 to 45 °C, Humidity _<80% RH
Each gauge carries a calibration certificate giving actual values
Measurement and transfer of heights, scribing and marking of workpieces and other measurements like running out, center distance, etc. by using a lever-type dial indicator
