Back Side Plunger Dial Gauge – Model 38

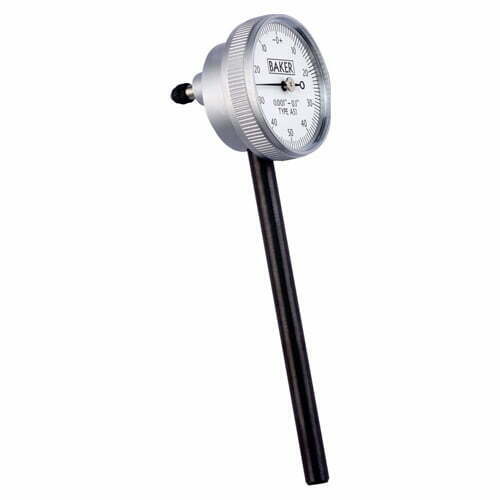

MODEL 38 Backside plunger Dial gauge, Tungsten carbide ball anvil. Strong & smooth metal bezel, the rigid brass case for more rigidity.
Features:
- An unique face reading dial gauge with sensing plunger at right angles to the dial
- Every gauge carries a calibration certificate giving actual values
- Spindle made of stainless steel
- Fitted with tungsten carbide ball anvil
- Rigid brass case for increased rigidity
- Strong and smooth metal bezel
- Suitable for mounting on machine tables, jigs and fixtures
- Used in small places where standard dial gauges are difficult to be accomodated
- Inch Gauges conform to ASME B89.1.10M
- Special dial Gauges for OEMs also manufactured on request
- Complete spares and after sales service available
Metric:
| Bezel Dia. | Type | Reading | Range | Graduation |
|---|---|---|---|---|
| 38mm | F01 | 0.01mm | 2mm | 0-50-0 |
| 38mm | F02 | 0.01mm | 2mm | 0-100 |
Inch:
| Bezel Dia. | Type | Reading | Range | Graduation |
|---|---|---|---|---|
| 38mm | F51 | 0.001″ | 0.1″ | 0-50-0 |
| 38mm | F52 | 0.001″ | 0.1″ | 0-100 |
ANSI (AGD):
| Bezel Dia. | Type | Reading | Range | Graduation |
|---|---|---|---|---|
| 1 1/2″ | A51 | 0.001″ | 0.1″ | 0-50-0 |
| 1 1/2″ | A52 | 0.001″ | 0.1″ | 0-100 |
