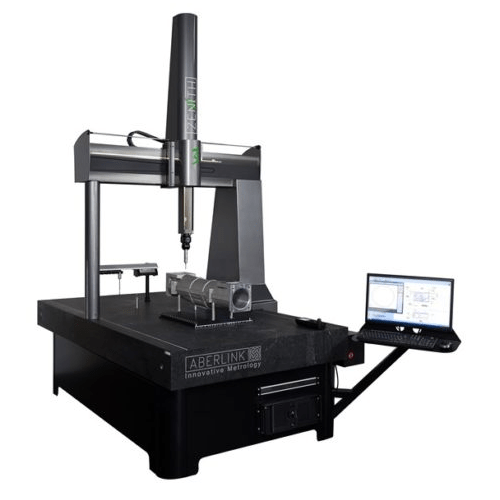

Zenith 3 CNC CMM – ( CMM Machine )
Features-Zenith 3 CNC CMM
- Aberlink’s revolutionary easy-to-use measurement software
- Shortest learning curve of any equivalent system – 1 day without prior CMM experience
- Smallest overall footprint of any comparable size CMM
- Choice of Y axis sizes ranging from 1000mm to 3000mm
- Suitable for the workshop environment
- Protection from environmental vibrations as standard
- Optimised friction free air bearings, all aluminium bridge and granite table
- CMM Touch Screen Joystick supplied as standard
- Free stylus change rack with every motorised probe head upgrade
Technical Info
| Axis Travel (mm) | Overall Size (mm) |
|---|---|
| X 1000 Y 1000, 1500, 2000, 2500, 3000 Z 600, 800 |
X 1520 Y 1700, 2200, 2700, 3200, 3700 Z 2500, 2900 |
| *Volumetric Accuracy: | TP20 (2.7 + 0.4L/100) µm TP200 (2.6 + 0.4L/100) µm SP25M (2.4 + 0.4L/100) µm |
| Scale Resolution: | 0.5μm |
| **Optimum Temp Range: | 18 – 22°C |
| Operational Temp Range: | 0 – 45°C |
| Table: | Solid granite |
| Table Load Capacity: | 1500kg as standard (Options up to 4400kg) |
| Max. Velocity Vector: | 600mm/sec |
| Max. Acceleration Vector: | 600mm/sec² |
| Air Consumption: | 50 l/min (1.8 cfm) |
