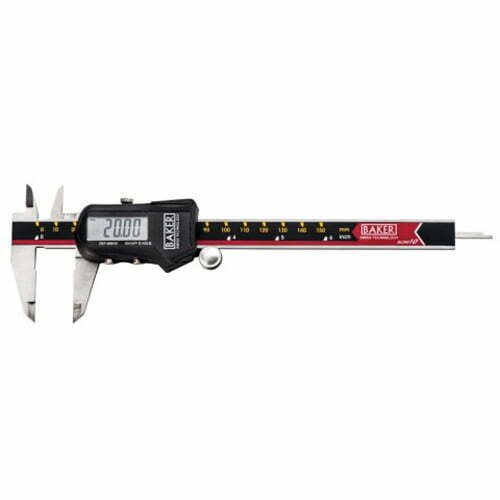

Vernier Calipers Large SDN Series
Large SDN series Digital vernier caliper / Digital Caliper available from 0-500 mm to 0-1000mm with IP66 protection. High contrast liquid crystal display. Fine adjustment with lock, Auto switch off, 3V battery.
Features:
- Every gauge carries a calibration certificate giving actual values
- Degree of protection IP66 (according to IEC 60529)
- High contrast Liquid Crystal Display
- Ergonomic beam design increases comfort; reduces fatigue
- Fine adjustment with the lock provided for ease of setting
- Auto switch-OFF
- Accuracy as per DIN 862
- Easy and quick operation (user friendly)
- Battery changeover is fast, easy and reliable
- Power supply 1 Lithium battery, type CR2032, 3V, 220 mAh
- Working temperature 5 to 40 °C
Products Details:
| Type | Reading | Range |
|---|---|---|
| SDN50 | 0.01 mm/0.0005″ | 0-500 mm /0-20″ |
| SDN60 | 0.01 mm/0.0005″ | 0-600 mm /0-24″ |
| SDN80 | 0.01 mm/0.0005″ | 0-800 mm /0-32″ |
| SDN100 | 0.01 mm/0.0005″ | 0-1000 mm /0-40″ |
