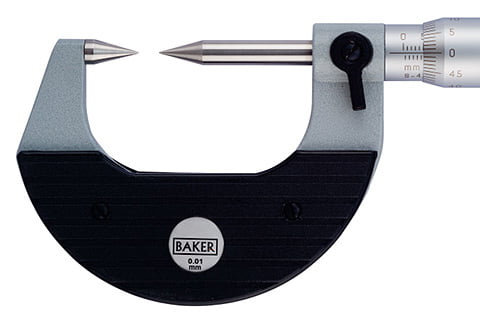

Special External Micrometer – Point
Features: Special External Micrometre – Point
- Spindle made from stainless steel for rust prevention
- Measuring Faces – 15° & 30° hardened steel points having a radius of 0.3 mm approximately
- An in-built ratchet in the thimble
- Easy zero setting on sleeve
- Sharp laser marking for better visibility & durability
- Heat insulating grip plates cover the entire handling portion of the micrometre frame
- Robust design withstands the toughest workshop conditions
Products Details:
| Measuring Range mm | Reading mm | Point Angle Degrees | Type | An mm | B mm | C mm | Measuring Range inch | Reading inch | Type |
|---|---|---|---|---|---|---|---|---|---|
| 0-25 | 0.01 | 15 | MMC25-P1 | 7.1 | 57.5 | 30.5 | 0-1″ | 0.001″ | INC1-P1 |
| 0-25 | 0.01 | 30 | MMC25-P2 | 7.1 | 57.5 | 30.5 | 0-1″ | 0.001″ | INC1-P2 |
| 25-50 | 0.01 | 15 | MMC50-P1 | 8 | 83 | 45 | 1-2″ | 0.001″ | INC2-P1 |
| 25-50 | 0.01 | 30 | MMC50-P2 | 8 | 83 | 45 | 1-2″ | 0.001″ | INC2-P2 |
| 50-75 | 0.01 | 15 | MMC75-P1 | 8 | 108 | 58 | 2-3″ | 0.001″ | INC3-P1 |
| 50-75 | 0.01 | 30 | MMC75-P2 | 8 | 108 | 58 | 2-3″ | 0.001″ | INC3-P2 |
| 75-100 | 0.01 | 15 | MMC100-P1 | 8 | 133 | 67.5 | 3-4″ | 0.001″ | INC4-P1 |
| 75-100 | 0.01 | 30 | MMC100-P2 | 8 | 133 | 67.5 | 3-4″ | 0.001″ | INC4-P2 |
