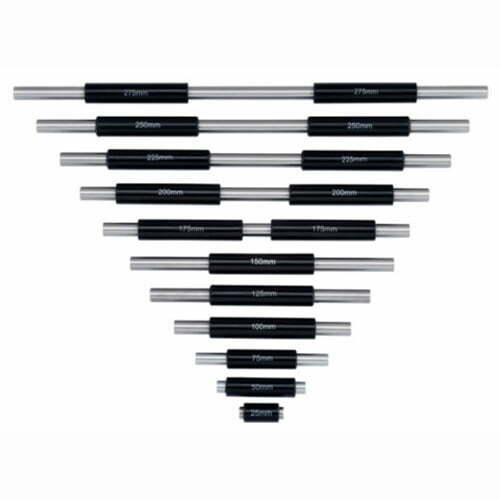

Setting Gauge for External Micrometer
Features: Setting Gauge for External Micrometer
- Hardened, ground & lapped measuring faces
- Flat-type measuring faces
- Measuring faces flatness at 0.3 µm
Metric:
| Length (L) mm | Tolerance µm | I mm | Diameter ( Ød) mm | Diameter ( ØD) mm |
|---|---|---|---|---|
| 25 | ± 1.5 | 20 | 7 | 11 |
| 50 | ± 2.0 | 40 | 7 | 11 |
| 75 | ± 2.5 | 40 | 7 | 11 |
| 100 | ± 3.0 | 60 | 8 | 12 |
| 125 | ± 3.5 | 60 | 8 | 12 |
| 150 | ± 4.0 | 60 | 8 | 12 |
| 175 | ± 4.5 | 135 | 8 | 12 |
| 200 | ± 5.0 | 160 | 8 | 12 |
| 225 | ± 5.5 | 160 | 8 | 12 |
| 250 | ± 6.0 | 180 | 8 | 12 |
| 275 | ± 6.5 | 195 | 8 | 12 |
Inch:
| Length (L) inch | Tolerance inch | I inch | Diameter ( Ød)inch | Diameter ( ØD) inch |
|---|---|---|---|---|
| 1″ | ± 0.00005″ | 0.79″ | 0.27″ | 0.43″ |
| 2″ | ± 0.0001″ | 1.65″ | 0.27″ | 0.43″ |
| 3″ | ± 0.0001″ | 1.65″ | 0.27″ | 0.43″ |
| 4″ | ± 0.0001″ | 2.45″ | 0.31″ | 0.47″ |
| 5″ | ± 0.00015″ | 2.45″ | 0.31″ | 0.47″ |
| 6″ | ± 0.00015″ | 2.45″ | 0.31″ | 0.47″ |
| 7″ | ± 0.00015″ | 5.31″ | 0.31″ | 0.47″ |
| 8″ | ± 0.00015″ | 6.31″ | 0.31″ | 0.47″ |
| 9″ | ± 0.0002″ | 6.31″ | 0.31″ | 0.47″ |
| 10″ | ± 0.0002″ | 7.15″ | 0.31″ | 0.47″ |
| 11″ | ± 0.0002″ | 7.67″ | 0.31″ | 0.47″ |
