Microgauge Internal Micrometer – 2 Point Bore Gauge

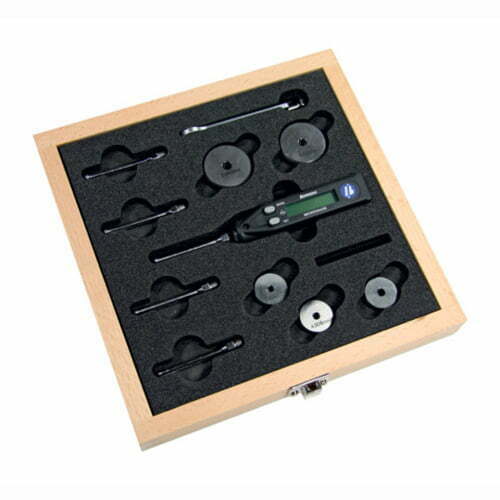

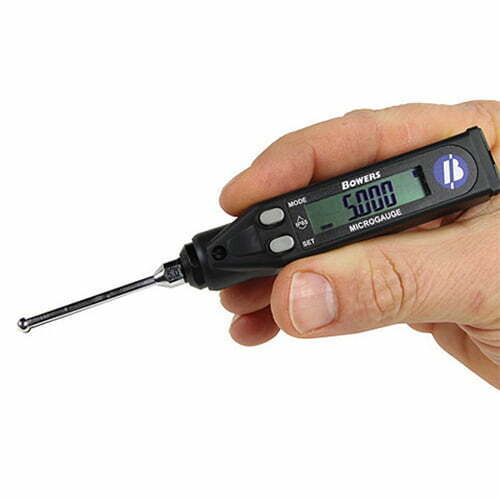

The new MicroGauge 2-point bore gauging system has been designed specifically for the measurement of small bores between 1-10 mm. Featuring a completely new digital readout and extremely compact overall dimensions, the MicroGauge is truly a pocket-sized instrument. Digital readout and measuring head together are about the same size and format as a ballpoint pen which represents a big advantage for those needing to measure small precision parts and who need to have their gauge with them all the time.
Features:Micro gauge Internal Micrometer
- System range: 1-10 mm
- New slim-line digital display
- Switchable resolution 0.01 / 0.001 / 0.0005 mm
- Simple 2-button operation
- Clear LCD display
- Data output: RS232 / USB proximity sensor
- Linearity:
-Diameter 1.0-1.5 max 2% of measuring travel, min 0.001 mm
-Diameter 1.5-6 max 1% of measuring travel, min 0.001 mm - Repeatability : 0.001 mm
- Hard-chromed ball-contacts
- Depth-stops available
- Stand available as an option
- After sales service
Technical Specification: Individual measuring head, readout and setting ring
| Measuring Head Code | Range (mm) | Range (inch) | Min/Max Measuring Depth (mm) | Digital Readout | Cone | Setting Ring Code | Setting Ring (mm) |
|---|---|---|---|---|---|---|---|
| MG011W | 0.95-1.15 | 0.037-0.045″ | 0.6/ 11 | MGU1 | MGC1 | MGR100 | 1.00 |
| MG012W | 1.07-1.25 | 0.042-0.049″ | 0.6 / 11 | MGU1 | MGC1 | MGR110 | 1.10 |
| MG013W | 1.17-1.35 | 0.046-0.053″ | 0.6 / 11 | MGU1 | MGC1 | MGR120 | 1.20 |
| MG014W | 1.27-1.45 | 0.050-0.057″ | 0.6 / 11 | MGU1 | MGC1 | MGR130 | 1.30 |
| MG015W | 1.37-1.55 | 0.054-0.061″ | 0.6 / 11 | MGU1 | MGC1 | MGR140 | 1.40 |
| MG016W | 1.50-1.90 | 0.059-0.075″ | 0.9 / 17 | MGU2 | MGC2 | MGR175 | 1.75 |
| MG017W | 1.80-2.20 | 0.071-0.087″ | 0.9 / 17 | MGU2 | MGC2 | MGR200 | 2.00 |
| MG018W | 2.05-2.45 | 0.081-0.096″ | 0.9 / 17 | MGU2 | MGC2 | MGR225 | 2.25 |
| MG019W | 2.25-2.75 | 0.089-0.108″ | 1.2 / 22 | MGU2 | MGC3 | MGR250 | 2.50 |
| MG020W | 2.50-3.00 | 0.098-0.118″ | 1.2 / 22 | MGU2 | MGC3 | MGR275 | 2.75 |
| MG021W | 2.75-3.25 | 0.108-0.128″ | 1.2 / 22 | MGU2 | MGC3 | MGR300 | 3.00 |
| MG022W | 3.00-3.50 | 0.118-0.138″ | 1.2 / 22 | MGU2 | MGC3 | MGR325 | 3.25 |
| MG023W | 3.25-3.75 | 0.128-0.148″ | 1.2 / 22 | MGU2 | MGC3 | MGR350 | 3.50 |
| MG024W | 3.50-4.00 | 0.138-0.157″ | 1.2 / 22 | MGU2 | MGC3 | MGR375 | 3.75 |
| MG025W | 3.75-4.25 | 0.148-0.167″ | 1.2 / 22 | MGU2 | MGC3 | MGR400 | 4.00 |
| MG026W | 3.65-4.35 | 0.144-0.171″ | 2.0 / 40 | MGU2 | MGC4 | MGR400 | 4.00 |
| MG027W | 4.15-4.85 | 0.163-0.191″ | 2.0 / 40 | MGU2 | MGC4 | MGR450 | 4.50 |
| MG028W | 4.65-5.35 | 0.183-0.211″ | 2.0 / 40 | MGU2 | MGC4 | MGR500 | 5.00 |
| MG029W | 5.15-5.85 | 0.203-0.230″ | 2.0 / 40 | MGU2 | MGC4 | MGR550 | 5.50 |
| MG030W | 5.65-6.35 | 0.222-0.250″ | 2.0 / 40 | MGU2 | MGC4 | MGR600 | 6.00 |
| MG031W | 6.15-6.85 | 0.242-0.270″ | 2.0 / 40 | MGU2 | MGC4 | MGR650 | 6.50 |
| MG032W | 6.65-7.35 | 0.262-0.290″ | 2.0 / 40 | MGU2 | MGC4 | MGR700 | 7.00 |
| MG033W | 7.15-7.85 | 0.281-0.309″ | 2.0 / 40 | MGU2 | MGC4 | MGR750 | 7.50 |
| MG034W | 7.65-8.35 | 0.301-0.329″ | 2.0 / 40 | MGU2 | MGC4 | MGR800 | 8.00 |
| MG035W | 8.15-8.85 | 0.321-0.349″ | 2.0 / 50 | MGU2 | MGC4 | MGR850 | 8.50 |
| MG036W | 8.65-9.35 | 0.340-0.368″ | 2.0 / 50 | MGU2 | MGC4 | MGR900 | 9.00 |
| MG037W | 9.15-9.85 | 0.360-0.388″ | 2.0 / 50 | MGU2 | MGC4 | MGR950 | 9.50 |
| MG038W | 9.65-10.35 | 0.380-0.408″ | 2.0 / 50 | MGU2 | MGC4 | MGR1000 | 10.00 |
