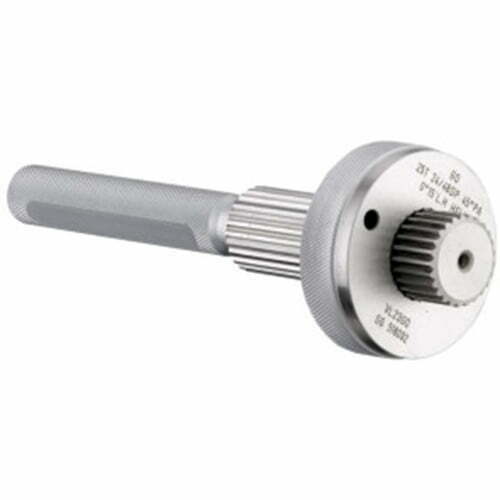

Go Spline Ring Gauge and Taper Master Plug
Description
Taper tooth master plugs with fit and wear lines beautifully exemplify Spline Gauges’ exacting specialty engineering. These are used to monitor the wear of ring gauges during component manufacture. The ring gauge is ground to fit the master plug for original and replacement ring gauges.Go Spline Ring Gauge and Taper Master Plug
Technical Info
| Specifications | Variable Spline Indicator Plug Gauge |
|---|---|
| Standards | ISO (International), DIN (Germany), ANSI / AGMA (American), JIS (Japanese) |
| Range: | |
| Min. diameter | 3mm |
| Max. diameter | 350mm |
| Max. number of teeth | 500 |
| Min. pitch | 0.1 module |
| Max. pitch | 25.4 module |
| Max. tooth length | 150mm |
| Typical Tolerances: | |
| Profile | 0.005mm |
| Total Spacing | 0.005mm |
| Runout | 0.005mm |
| Tooth Alignment | 0.0025mm |
| Space Width | 0.005mm |
