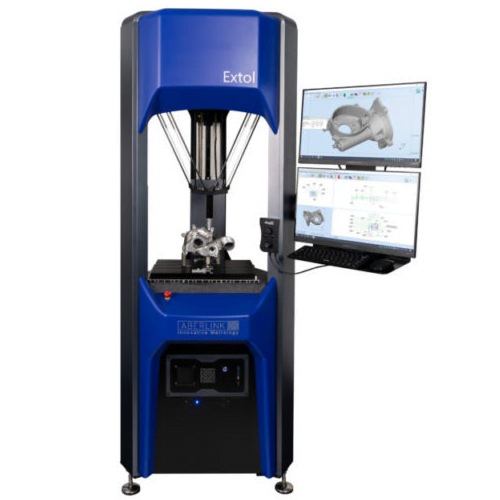

Extol Shop Floor Cnc Cmm
Features-EXTOL SHOP FLOOR CNC CMM
- The EXTOL is 2nd generation of Non-Cartesian Shop Floor CNC CMM.
- The delta mechanism is known to be robust, reliable, and fast due to very low inertia.
- Improved smoothness and dirt immunity on the shop floor due to fully sealed recirculating bearings proven in the machine tool market.
- A directly coupled belt-drive system eliminates the need for a gearbox and any associated backlash issues.
- Improved reliability of shop floor CMM inspection due to Swiss-made DC motors and a new Deva motion control system.
- The super-smooth belt drives and linear bearings avoid false triggering due to vibration and enable long styli to be used.
- Five temperature sensors monitoring both the machine and ambient temperature which ensures operation capability in uncontrolled temperature environments.
- Automatic Tool Offset Correction and Automation options allow integration into fully automated manufacturing cells.
Technical Info
| Axis Travel (mm) | XY Dia. 370 Z 270 |
| Overall Size (mm) | X 730 Y 715 Z 2000 |
| *Volumetric Accuracy | (2.6 + 0.4L/100) µm |
| Scale Resolution | 0.1µm |
| Operational Temp Range | 5 – 45°C |
| Table | Solid Granite plate |
| Table Load Capacity | 200kg |
| Max. Velocity Vector | 500mm/sec |
| Max. Acceleration Vector | 750mm/sec² |
| Air Consumption | None |
| Required Air Pressure | Not required |
