| Measuring Travel |
± 2 mm (± 1 mm for 2920V) |
| Total Travel |
4.5 mm (3 mm for 2920V) |
| Linearity |
± 0.3% |
| Repeatability |
0.02 µm |
| Measuring force |
0.45 to 0.75 N |
| Pre-travel |
Variable |
| Application |
Vacuum Lift |
| Environmental Protection (IEC 529) |
IP 66 |
| Plunger guide |
Pre-loaded, caged linear ball bearing |
| Cable |
2 m (Axial) Polyurethane |
| Cable support spring |
Present |
| Connection adaptor |
5-pin, Male DIN plug (240 °) |

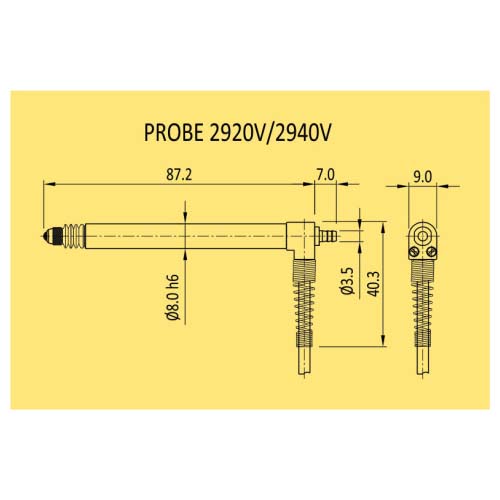

| Total Length (with support spring) |
114 mm |
| Probe Body |
Hardened & ground stainless steel (55HRC) (Diameter 8h6) |
| Reference temperature |
20 °C |
| Contact Tip |
Tungsten Carbide Ball 3 mm Dia, M2.5 Thread(240 °) with screw |
| Sealing bellow |
Viton |
