| Measuring Travel |
± 1 mm |
± 1 mm |
± 2 mm |
| Total Travel |
2.25 mm |
3 mm |
4.5 mm |
| Linearity |
± 0.3% (of total measuring range) |
± 0.3% (of total measuring range) |
± 0.3% |
| Repeatability |
0.02 μm |
0.02 µm |
0.02 µm |
| Measuring force |
0.6 N |
0.6 N |
0.6 N |
| Pre-travel |
Variable |
Variable |
Variable |
| Application |
Universal |
Universal |
Universal |
| Environmental Protection (IEC 529) |
IP 64 |
IP 64 |
IP 64 |
| Plunger guide |
Preloaded, caged linear ball bearing |
Pre-loaded, caged linear ball bearing |
Pre-loaded, caged linear ball bearing |
| Cable |
2 m., Polyurethane. |
2 m (Axial) Polyurethane |
2 m (Axial) Polyurethane |
| Cable support spring |
Present |
Present |
Present |
| Connection adaptor |
5–pin, Male DIN plug (240°) |
5-pin, Male DIN plug (240 °) |
5-pin, Male DIN plug (240 °) |

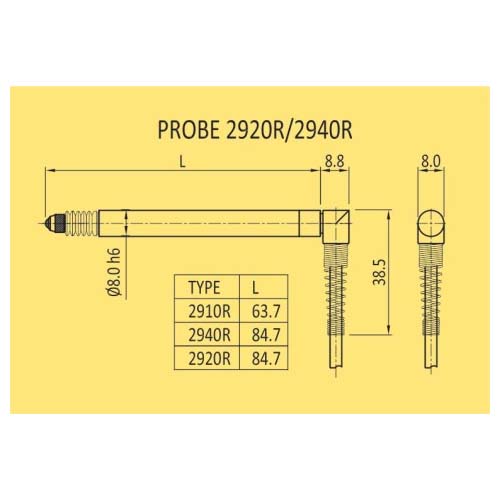

| Total Length (with support spring) |
87 mm |
112 mm |
112 mm |
| Probe Body |
Hardened and ground stainless steel (55HRC); Diameter 8h6 |
Hardened & ground stainless steel (55HRC) (Diameter 8h6) |
Hardened & ground stainless steel (55HRC) (Diameter 8h6) |
| Reference temperature |
20°C |
20 °C |
20 °C |
| Contact Tip |
Tungsten carbide ball 3 mm Dia, M2.5 Thread. |
Tungsten Carbide Ball 3 mm Dia, M2.5 Thread |
Tungsten Carbide Ball 3 mm Dia, M2.5 Thread |
| Sealing bellow |
Viton with the metal clips |
Viton with the metal clips |
Viton with the metal clips |
