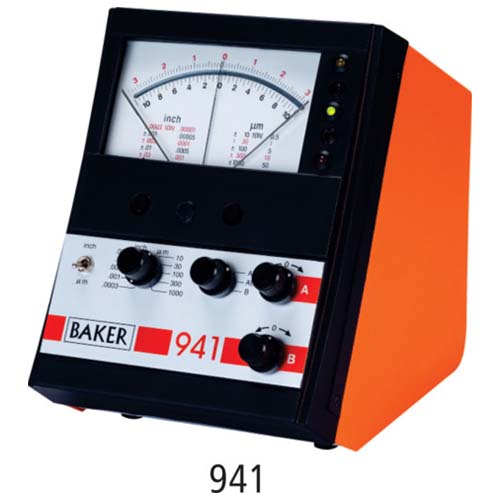

Electronic Gauge: Twin Channel: 941 Analogue
Electronic Gauge: Twin Channel: 941 Analogue
Features
- Twin channel gauge units with selectable probe combinations of +A, -A, +B, -B, +A +B, +A -B, -A +B, -A -B
- Inch and Metric measuring ranges
- RED, GREEN and YELLOW tolerance lamps for REJECT ACCEPT and REWORK indications
- RS232 data output
- Comprehensive outputs for further processing
- Compatible with Half-bridge and LVDT type inductive measuring probes
- Sturdy, Ergonomic design, suitable for shop floor environment
- Splash proof and sealed against dust
- Add-on Modules available for various applications e.g. Light Grading Module, Relay Module, etc.
- Mains supply 220 volts AC
Technical Info
| 941 | |
|---|---|
| Metric Ranges | ±10, ±30, ±100, ±300, ±1000 µm |
| Resolution | 0.5, 1, 5, 10, 50 µm |
| INCH Ranges | ±0.0003, ±0.001, ±0.003, ±0.01, ±0.03 inch |
| Resolution | 0.00001, 0.00005, 0.0001, 0.0005, 0.001 inch |
