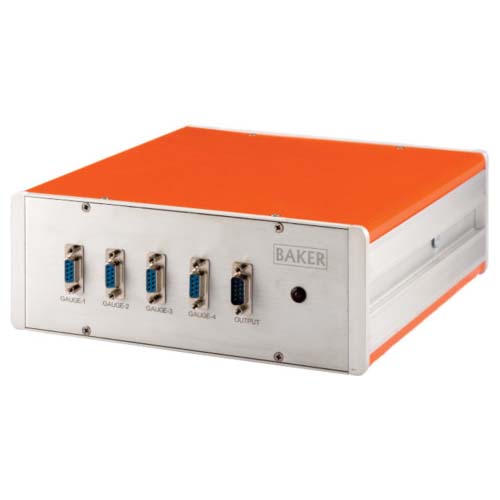

Electronic Gauge Interface: Multiplexer

Features

• Up to 4 RS232 compatible Baker electronic measuring inputs can be interfaced to one 4-channel multiplexer
• PC can access RS232 data from the four Baker electronic measuring instruments through the RS232 Output port of the 4 channel multiplexer
• Maximum distance between Baker multiplexer and PC is 2 meters, and that of Baker instrument to the Electronic Gauge Interface Multiplexer is 3 meters
• Data from each Baker instrument is tagged by a unique ID to prevent data loss, corruption, or mixing

Technical Info

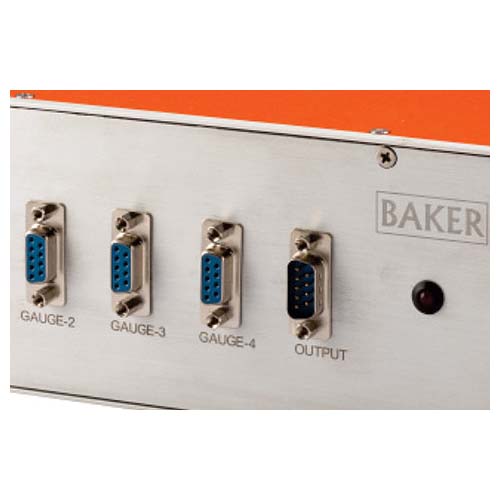

• Data Input port : 4 Channels (RS232)
• Data Output port : One (RS232)
• Data Output format : RS232 C
• Data transmission method : Simplex or Half-duplex
• Data transmission code : ASCII
• Data length : 8 bits
• Start bit : 1
• Stop bit : 1
• Parity check : None
• Baud rate : 9,600 / 19,200

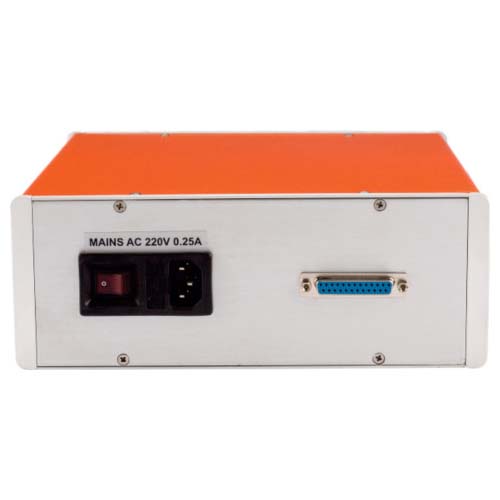

• Power supply : 230 V AC
• Dimensions : (W x D x H) : 235 x 245 x 90 mm
• Optional Accessory : Foot switch
