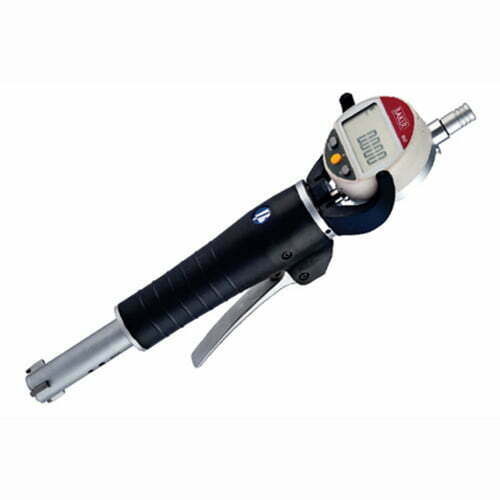

Digital Internal Micrometer – XTL Series (Lever Type)

Features:Digital Internal Micrometer – XTL Series

Measuring range 6-100 mm (diameters above 100 mm on request)
Excellent for vertical bore measurement
Simple 2-button operation
2 preset memories
RS-232 output
Self-centering heads
Constant measuring pressure
Fast, accurate measurement
Resolution 0.001mm (0.00005″)
Tungsten carbide measuring faces on all 3-point heads from 12.5 mm]
Blind bore measurement above 12.5 mm (0.500″)
Extensions available for deep hole measurement

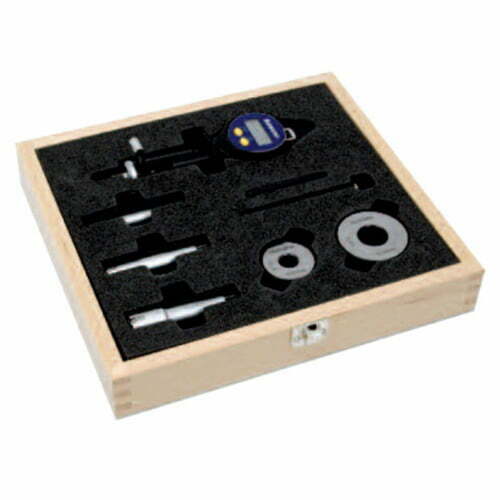

Setting rings included with individual instruments and sets
UKAS certificates supplied with all gauges
Serial number on all gauges and measuring heads
Heads with special anvils available to suit specific customer & requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
Internal Micrometers manufactured according to DIN 863, part 4
After sales service.

Products Details:

Code No (mm)	Range (mm)	Code No (inch)	Range (inch)	Accuracy	Accuracy	Depth	Depth	Lever Holder	Setting Ring	Setting Ring
				(mm)	(inch)	(mm)	(inch)		(mm)	(inch)
XTD6M	6-8	XTD6i	1/4-5/16″	0.004	0.00015″	58	2.28″	XTLG01	8.00	0.312″
XTD8M	8-10	XTD8i	5/16-3/8″	0.004	0.00015″	58	2.28″	XTLG01	8.00	0.312″
XTD10M	10-12.5	XTD10i	3/8-1/2″	0.004	0.00015″	58	2.28″	XTLG02	12.50	0.500″
XTD12M	12.5-16	XTD12i	1/2-5/8″	0.004	0.00015″	62	2.44″	XTLG02	12.50	0.500″
XTD16M	16-20	XTD16i	5/8-3/4″	0.004	0.00015″	62	2.44″	XTLG02	20.00	0.750″
XTD20M	20-25	XTD20i	3/4-1″	0.004	0.00015″	66	2.62″	XTLG03	20.00	0.750″
XTD25M	25-35	XTD25i	1-1 3/8″	0.004	0.00015″	66	2.62″	XTLG03	35.00	1.375″
XTD35M	35-50	XTD35i	1 3/8-2″	0.004	0.00015″	80	3.15″	XTLG03	35.00	1.375″
XTD50M	50-65	XTD50i	2-2 5/8″	0.005	0.00020″	80	3.15″	XTLG03	65.00	2.625″
XTD65M	65-80	XTD65i	2 5/8-3 1/4″	0.005	0.00020″	80	3.15″	XTLG03	65.00	2.625″
XTD80M	80-100	XTD80i	3 1/4-4″	0.005	0.00020″	85	3.35″	XTLG03	80.00	3.250″
