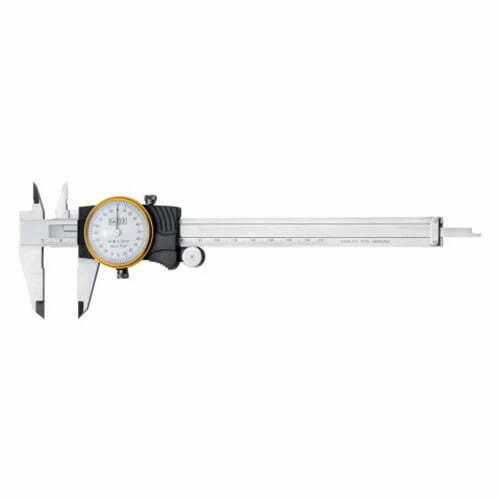

Dial Vernier Caliper ( Vernier caliper dial ) – DC Series
Features:
- Every gauge carries a calibration certificate giving actual values
- Checks OD, ID, step and depth
- Robust, hardened and ground stainless steel jaws and beam
- With 0.02 mm Least Count
- Accuracy as per DIN 862

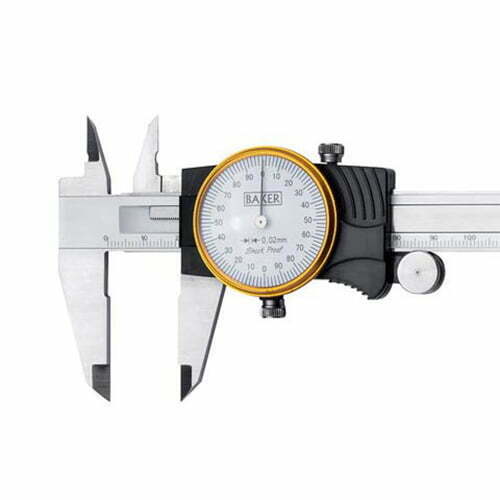

- Clear, easy to read graduated dial with adjustable bezel
- Shock Proof movement
- Supplied in a sleek plastic box

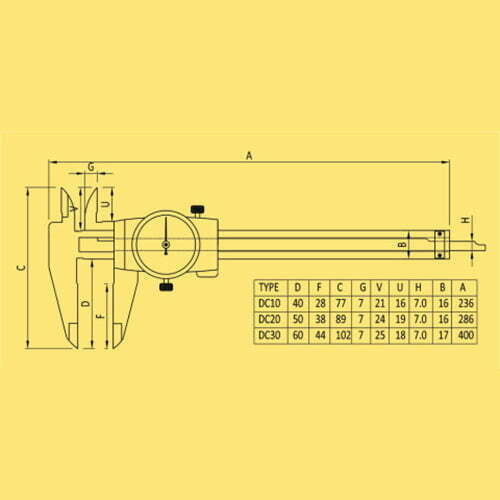

Products Details:
| Type | Reading | Range |
|---|---|---|
| DC10 | 0.020 mm | 0-150 mm |
| DC20 | 0.020 mm | 0-200 mm |
| DC30 | 0.020 mm | 0-300 mm |
