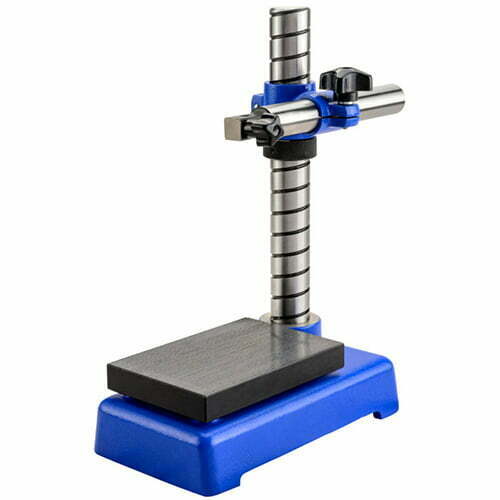

Dial Instruments Dial Comparator Stand
Features:
- Rigid cast iron base that enables precise measurement.
- The column has a helically threaded arm on which the dial gauge is fixed and can be accurately positioned on the job by means of a threaded nut.
- The sliding arm allows the indicating devices to be brought in to any position above the plain table. This enables checking of work pieces of large dimensions.
- Available in plain and serrated steel base with flatness 3.0 µm and hardness HRC 60 +2 HRC.
Product Details:
| Model | Measuring Range | Base Type | Base Size | Stem hole for dial | Fine adjustment |
|---|---|---|---|---|---|
| CS150 | 150 mm | Plain | 90 mm x 95 mm | Ø8 h7 | 2 mm |
| CS150-S | 150 mm | Serrated | 90 mm x 95 mm | Ø8 h7 | 2 mm |
| CS200 | 200 mm | Plain | 150 mm x 100 mm | Ø8 h7 | Entire range |
| CS200-S | 200 mm | Serrated | 150 mm x 100 mm | Ø8 h7 | Entire range |
