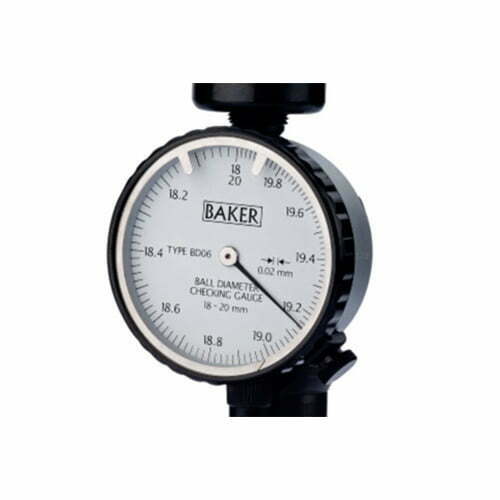

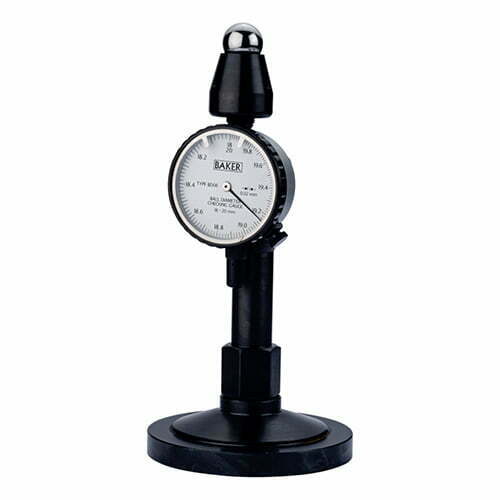

Dial Instruments Ball Diameter
Features:
- Every gauge carries a calibration certificate giving actual values
- Gauge measures ball diameter quickly
- Minimum skill required
- Inspector needs to just place the ball over the circular cup & the direct reading of ball diameter is shown
- Available in variety of sizes
Products Details:
| Type | Range (mm) | Reading (mm) |
|---|---|---|
| BD01 | 1-10 | 0.01 |
| BD02 | 10-12 | 0.02 |
| BD03 | 12-14 | 0.02 |
| BD04 | 14-16 | 0.02 |
| BD05 | 16-18 | 0.02 |
| BD06 | 18-20 | 0.02 |
| BD07 | 20-22 | 0.02 |
| BD08 | 22-24 | 0.02 |
| BD09 | 24-26 | 0.02 |
| BD10 | 26-28 | 0.02 |
| BD11 | 28-30 | 0.02 |
