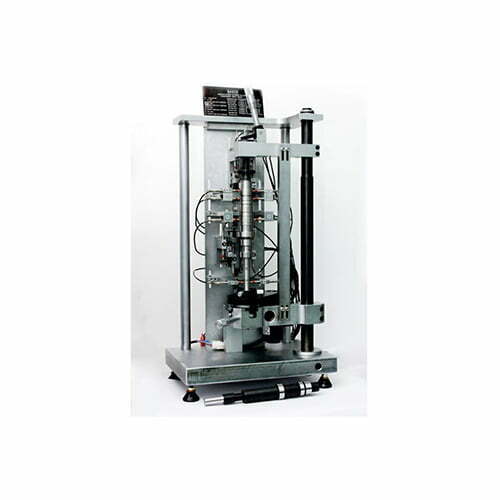

Features-Customised Gauging Solution – Transmission Shaft

• Swinging arms for easy loading & unloading
• Provision to hold components between centers
• Vertical fixture which occupies less space
• Motorised component rotation

• Automated gauging solution
• Multiple outer diameters & lengths in a single setup
• Measured in ABBE Principle by ‘True-Line’ measuring element (in Technical Collaboration with REORG Germany)
• Solution for Input shaft, output shaft & various types of shafts
• Dynamic parameter measurement can be easily done
• Small variation in shaft can be accommodated in a single fixture
• Diameters only 2 mm apart can be measured with a special bridge
• Highly robust & durable technology
• Probe protection inbuilt
• Modular design
