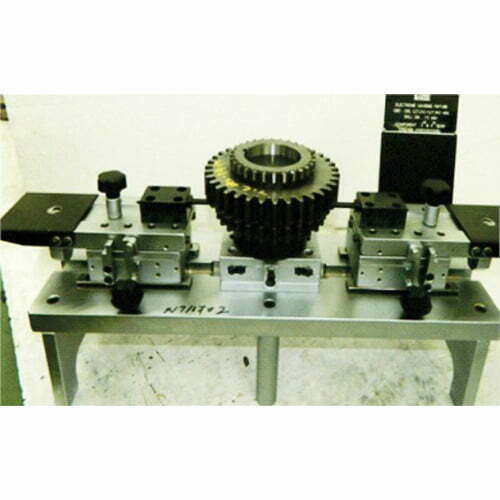

Features Transmission Gears

• Gauging system for over ball diameter measurement
• Easy loading & unloading
• Data acquisition and SPC analysis
• Odd and even numbers of teeth
• For spur and helical gears

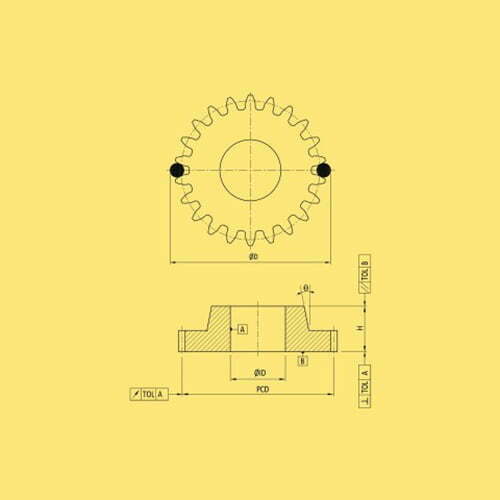

Technical Info

• Over ball diameters
• Bore dia. at 2 levels
• Height ‘H’
• Parallelism
• Squareness
• Cone angle ‘q’
