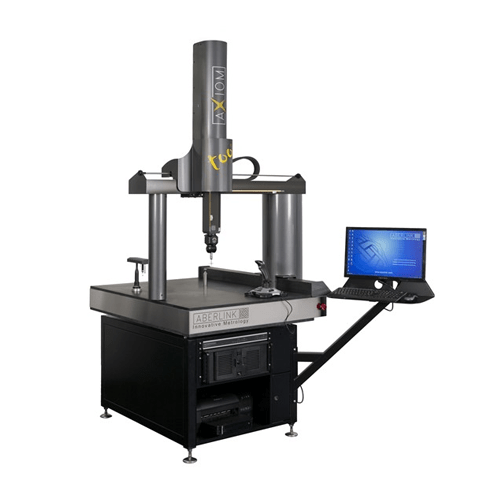

Axiom too CNC CMM – High Specification
Feature-Axiom too CNC CMM – High Specification
- Shortest learning curve of any equivalent system
- Choice of Y axis sizes ranging from 600mm to 1500mm
- Fitted with 0.0001mm linear encoders for superior accuracy
- Angled bearing zero backlash drive system for quicker acceleration and faster travel
- Suitable for the workshop environment
- Optimized friction-free air bearings, all aluminum bridge and granite table
Technical Info
| Axis Travel (mm) | Overall Size (mm) |
|---|---|
| X 640 Y 600, 900, 1200, 1500 Z 500 |
X 1130 Y 900, 1200, 1500, 1800 Z 2320 |
| *Volumetric Accuracy: | TP20 (2.1 + 0.4L/100) μm TP200 (2.0 + 0.4L/100) μm SP25M (1.8 + 0.4L/100) μm |
| Scale Resolution: | 0.1μm |
| **Optimum Temp Range: | 18 – 22°C |
| Operational Temp Range: | 0 – 45°C |
| Table: | Honeycomb aluminium & granite or solid granite |
| Table Load Capacity: | 300kg (Honeycomb) or 500kg (Solid) |
| Max. Velocity Vector: | 866mm/sec |
| Max. Acceleration Vector: | 1200mm/sec² |
| Air Consumption: | 50 l/min (1.8 cfm) |
